Garrick Circular Cold-cut Saws are designed to provide fast, economical metal cutting of all types and shapes of steel with a precision, burr-free milled finish. They have a heavy duty cast iron gearbox, balanced and adjustable pivot points, and an integral blade coolant system making them suitable for industrial use.
FEATURES
> Variable mitre cutting from +45° to -45° with degree scale
> Rapid action, dual-clamping and self-centering vice
> Quick release vice mechanism for repeat cutting
> Built in blade coolant system with flow control
> Spring Assisted Head return
> Automatic blade guard cover
> Deadman switch on operating handle
> Stand mounted switching and eStop
> Top quality made in Taiwan

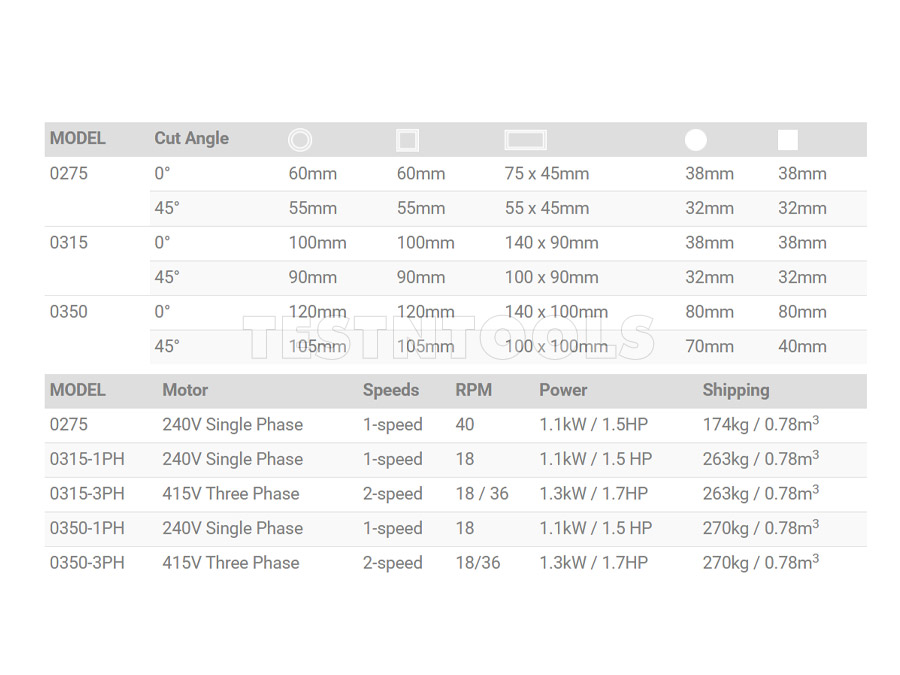

SPECIFICATIONS
Blade diameter 350mm
Motor 415V 3 Phase
2 speed
RPM 18/36
Power 1.3kW / 1.7HP
Mitre cutting variable 0 - 45 degrees
Weight 270kg / 0.78m3
CAPACITY
At 0 degrees
Round 120mm diameter
Square 120 x 120mm
Rectangle 140 x 100mm
Solid round 80mm diameter
Solid square 80 x 80mm
At 45 degrees
Round 105mm diameter
Square 105 x 105mm
Rectangle 100 x 100mm
Solid round 70mm diameter
Solid square 40 x 40mm
NOTES
> Use Lactuca cutting oil for best efficiency and cut quality.
