IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.

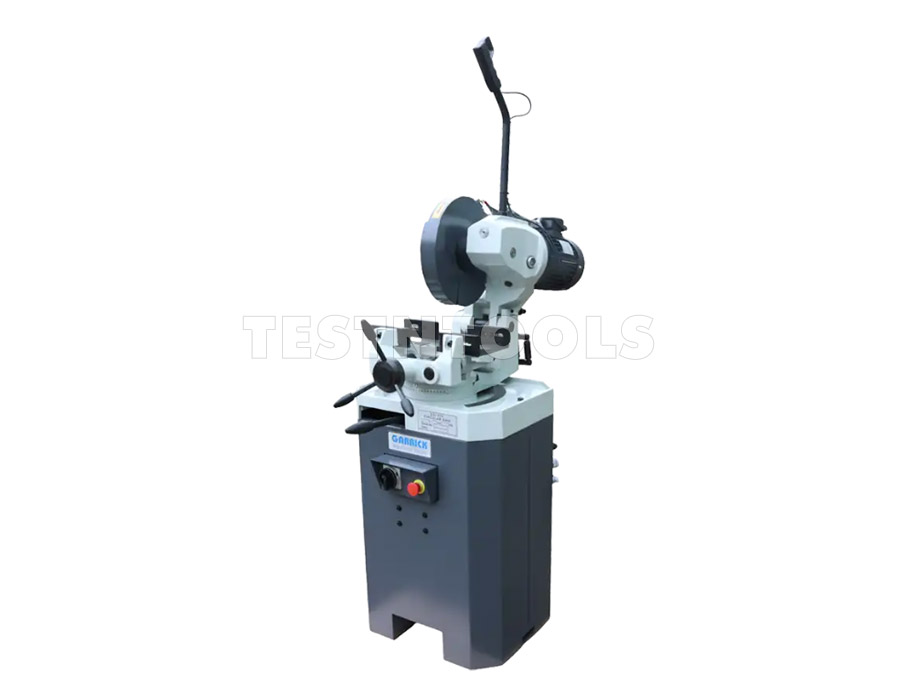

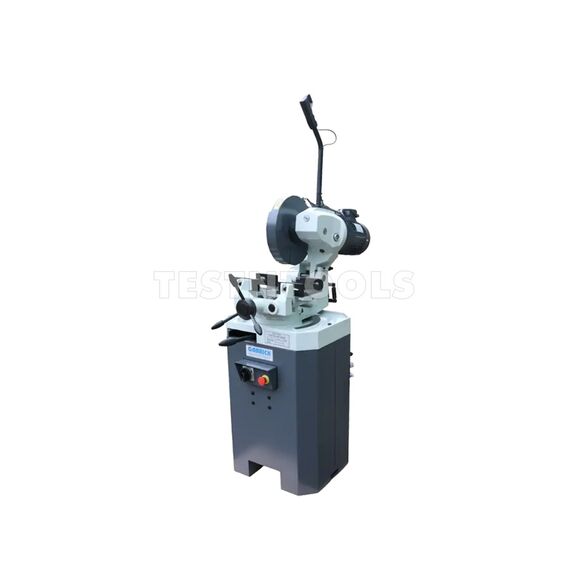

Garrick Circular Cold-cut Saws are designed to provide fast, economical metal cutting of all types and shapes of steel with a precision, burr-free milled finish. They have a heavy duty cast iron gearbox, balanced and adjustable pivot points, and an integral blade coolant system making them suitable for industrial use.
FEATURES
> Variable mitre cutting from +45° to -45° with degree scale
> Rapid action, dual-clamping and self-centering vice
> Quick release vice mechanism for repeat cutting
> Built in blade coolant system with flow control
> Spring Assisted Head return
> Automatic blade guard cover
> Deadman switch on operating handle
> Stand mounted switching and eStop
> Top quality made in Taiwan

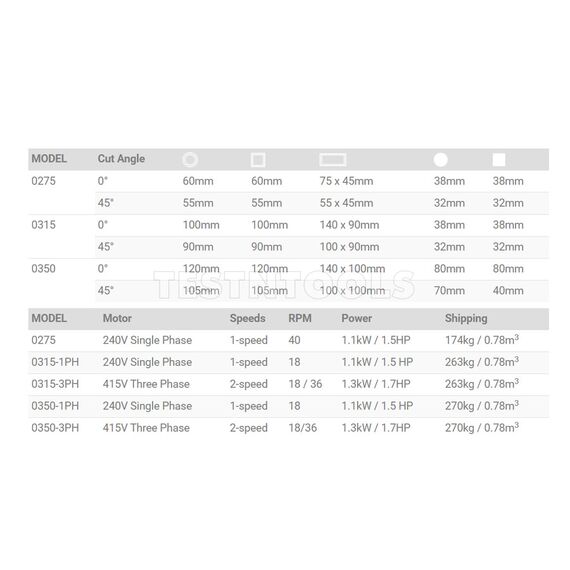

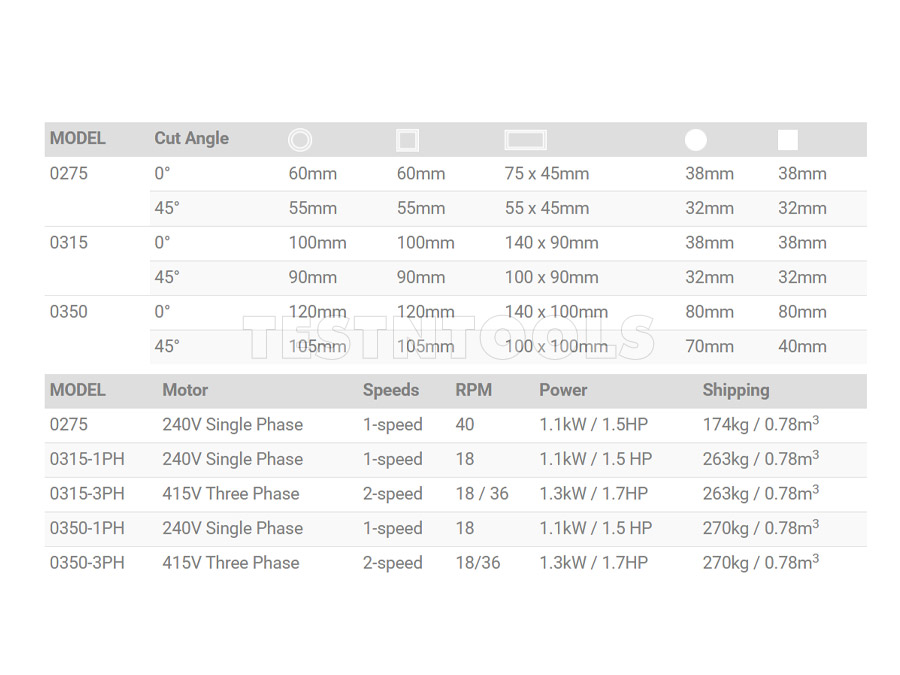

SPECIFICATIONS
Blade diameter 315mm
Motor 415V 3 Phase
2 speed
RPM 18/36
Power 1.3kW / 1.7HP
Mitre cutting variable 0 - 45 degrees
Weight 263kg / 0.78m3
CAPACITY
At 0 degrees
Round 100mm diameter
Square 100 x 100mm
Rectangle 140 x 90mm
Solid round 38mm diameter
Solid square 38 x 38mm
At 45 degrees
Round 90mm diameter
Square 90 x 90mm
Rectangle 100 x 90mm
Solid round 32mm diameter
Solid square 32 x 32mm
NOTES
> Use Lactuca cutting oil for best efficiency and cut quality.
No reviews found
