The GCM 12 GDL does away with rails entirely, replacing them with the Axial Glide System, two hinged arms operating at right angles to each other with high quality sealed ball bearings that provide a frictionless glide that allows for cramped workshops or use on building sites where space is at a premium. Bosch claims that the glide system components will never need maintaining.
All controls for the mitre and bevel settings are located on the front of the machine. The GCM 12 GDL has and two extendable material supports that slide out from the base.
FEATURES
> Axial Glide system
> Soft start
> Electric brake
> High power motor for fast cutting
> Front bevel adjustment controls
> Max cutting capacity 91 x 187mm
> Dual guide lasers
> Compatible with the Bosch Click & Clean dust extraction system and various stands
GCM12GDL GLIDING MITRE SAW SPECIFICATIONS
Blade diameter 305mm (12")
Cutting capacity 0 degrees 104 x 341mm
Cutting capacity 45 degrees mitre 104 x 240mm
Cutting capacity 45 degree incline 51 x 341mm
Mitre setting 52 degrees L / 60 degrees R
Incline setting 47 degrees L / 47 degrees R
Dimensions 860W x 600L x 530H mm
Input power 2000W
No-load speed 4,000rpm
Blade bore 25.4mm
Weight 32.1kg
GTA3800 STAND SPECIFICATIONS
> Max load bearing capacity 250kg
> Work bench length without extension 1578mm
> Work bench length with extension 3877mm
> Work bench height 824mm
> Weight without accessories 18.9kg
> Weight with accessories 22.3kg
> Dimensions 1578 x 140 x 190mm
WHAT YOU GET

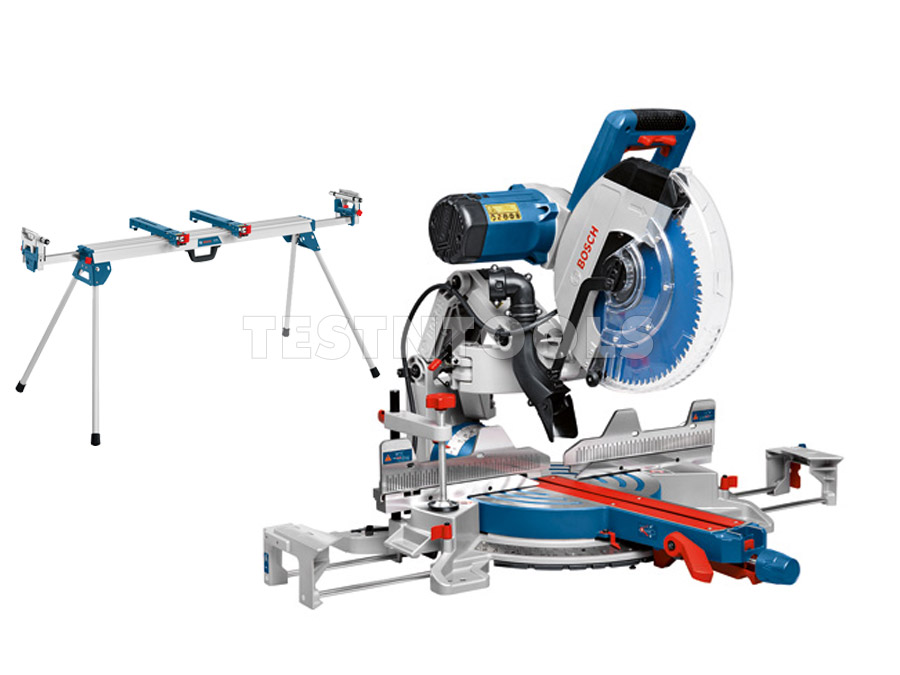

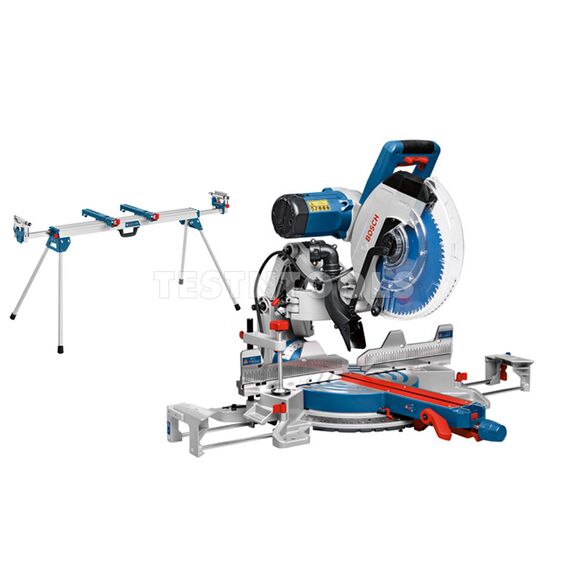

GCM 12GDL -305mm (12") Sliding Mitre Saw
GTA 3800 Stand
User manual
6 Year Warranty including Trade upon registration - With service agents Nationwide
