The big feature of this 7" bandsaw is the swivel head that moves 45 degrees in both directions. This is a big advantage if your workshop has limited space because you can angle the head instead of having to move your steel stock. It's a big timesaver as well if doing lots of angle cuts.
FOR CUTTING
Steel, Non-ferrous, Plastics, Wood
FEATURES
> For industrial applications
> Swivel cutting head from -45° to +45°
> Automatic down feed stop
> All cast iron frame and bed
> All ball bearing blade guides
> Wheels allow easy movement around the workshop
> Hydraulic down feed control with infinitely variable adjustment
> 3-speed belt drive allows machine to handle a wide range of materials
SPECIFICATIONS
Single-phase motor 1.1kW
Blade size 2360 x 20 x 0.9mm
Blade speed 24, 41, 61, 82 m/min
Bow Swivel 0 to +45°
Dimension 1290 x 730 x 1150 mm
Weight Nett/Gross 190 / 227 kg
CAPACITY
At 90 degrees
Solid round 178mm diameter
Solid rectangle 178 x 210mm
At 45 degrees
Solid round 127mm diameter
Solid rectangle 85 x 140mm
WHAT YOU GET

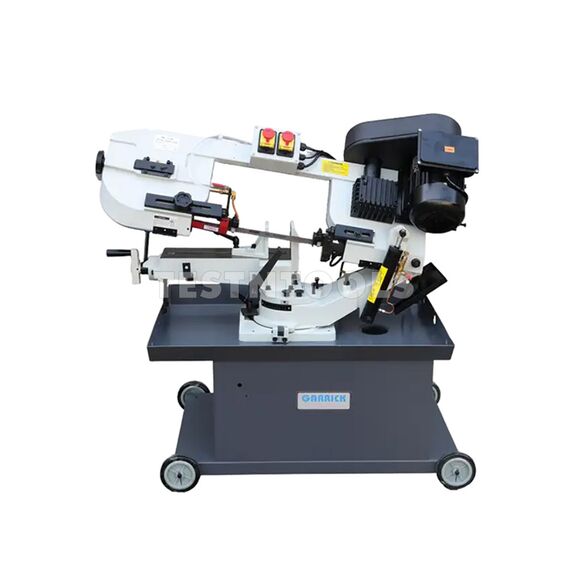

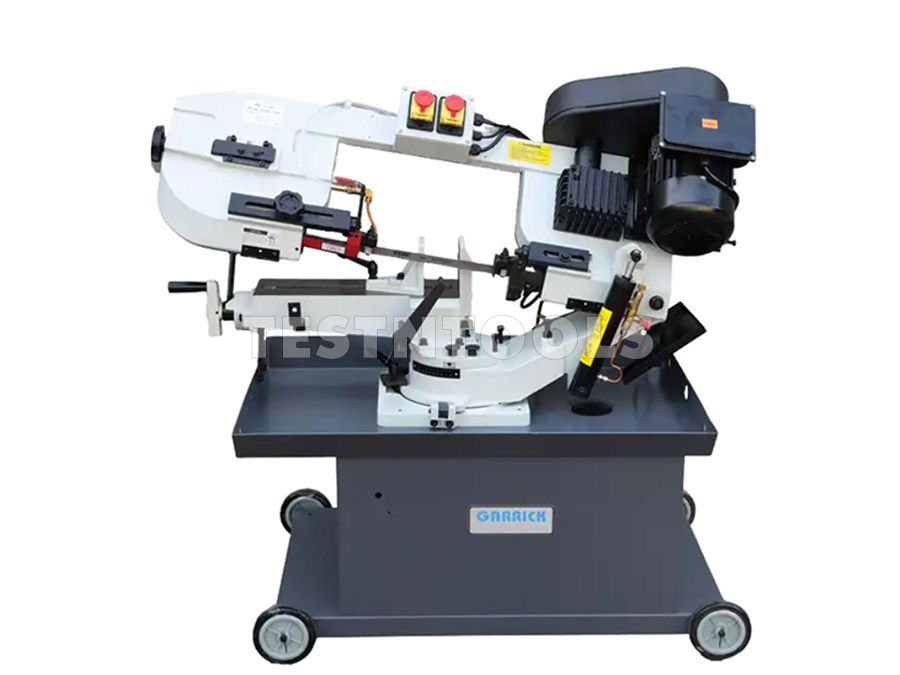

Garrick Bandsaw Swivel Head 1 Phase BS200S
General-purpose 10TPI bi-metal blade
User manual
NOTES
> Use Lactuca cutting oil for best efficiency and cut quality.
