IMPORTANT SHIPPING INFORMATION
This is a heavy item that must be delivered by truck. The delivery charge calculated at checkout applies to town and city CBD business addresses only (and local freight depot if applicable). It does not cover working from home business addresses. Check with us if you are unsure if your address qualifies or want a quote for delivery to a home or rural delivery address.
FOR CUTTING
Steel, Non-ferrous, Plastics, Wood
FEATURES
> Automatic down feed stop
> Quick release vice and swivel cutting head from -45° to +60°
> All cast iron frame and bed
> All ball bearing blade guides
> Infinitely variable hydraulic down feed
> Pull-out handle and wheels to move it easily
SPECIFICATIONS
Rectangle capacity 100 x 150mm
Single-phase motor 550W 230VAC
Blade size 1640 x 13 x 0.6mm
Blade speed 23, 34, and 54 m/min
Vice tilt 0 - 60 degrees
Wheel diameter 127mm (5")
Dimensions 940 x 450 x 540 mm
Weight Nett/Gross 90 / 81.4 kg
CAPACITY
At 90 degrees
Solid round 125mm diameter
Solid rectangle 100 x 150mm
At 45 degrees
Solid round 95mm diameter
Solid rectangle 95 x 76mm
At 60 degrees
Solid round 50mm diameter
Solid rectangle 50 x 56mm
WHAT YOU GET

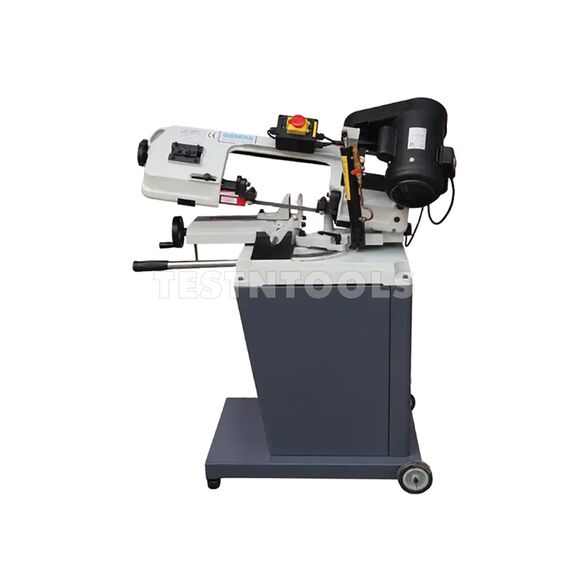

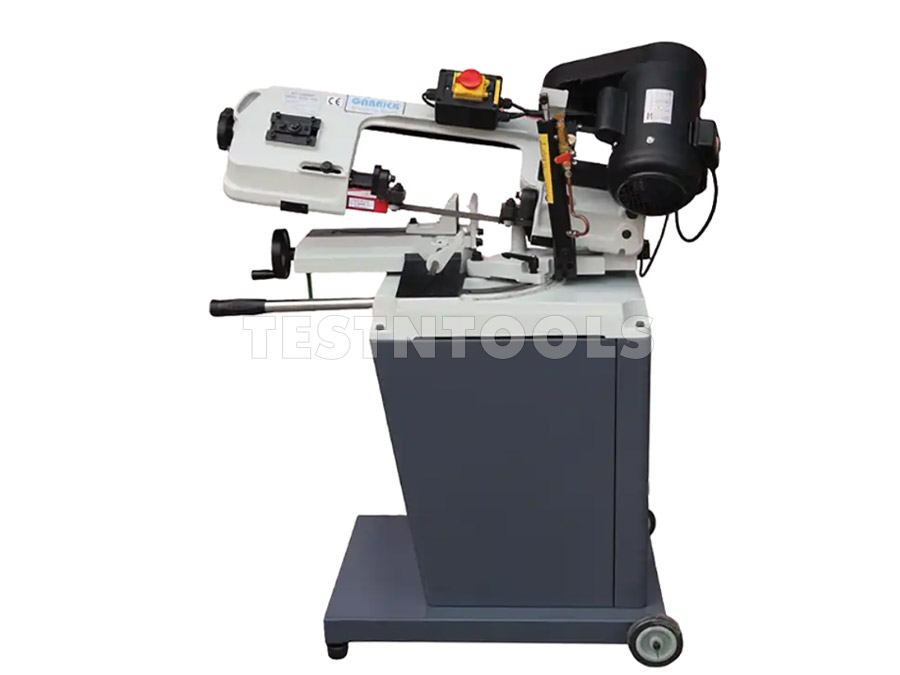

Garrick Bandsaw 100 x 150mm Single Phase BS128
Bi-metal blade (10TPI)
Base with wheels
Accessory table for vertical cutting (not always included - check with us first)
NOTES
> Use Lactuca cutting oil for best efficiency and cut quality.
> Does not have a coolant pump
This is an entry-level bandsaw intended for the home workshop. For industrial applications, we recommend the BS712 as a minimum. Contact us for advice, we're happy to help.
