RECOMMENDED USE
Steel sheets up to 3mm
Stainless-steel sheets up to 2.5mm
FEATURES
> 18V hydraulic punching tool that delivers burr-free and high-quality clean cuts
> 60kN output force and comprehensive monitoring functions
> Accessories from M16-M40 and PG9-PG36 are suitable for both steel and stainless steel
> Status LED indicates tool status and maintenance intervals
> USB connection and read-out software (free and available to download below)
> Convenient overview of tool history, error messages, important parameters and maintenance cycles
> Comes with a certificate that guarantees 100% end-of-line quality control
> Compatible with all Bosch Professional 18V batteries
SPECIFICATIONS
Capacity stainless steel max 2.5 mm
Capacity steel max 3 mm
Head rotation 360 °
Punching force max 60 kN
Automatic retraction Yes
Intelligent punching detection Yes
Maintenance interval 20.000 cycles
Manual pressure release Yes
USB connector Yes
Manual retraction stop Yes
Read-Out Functionality Yes
Work light Yes
Automatic pressure limitation and monitoring Yes
USB mode USB 2.0
Punching time 2 s to 5 s (for ST37 3.0mm with 16,2mm Punch)
Tool dimensions (length) 369 mm
Tool dimensions (width) 97.4 mm
Tool dimensions (height) 77.2 mm

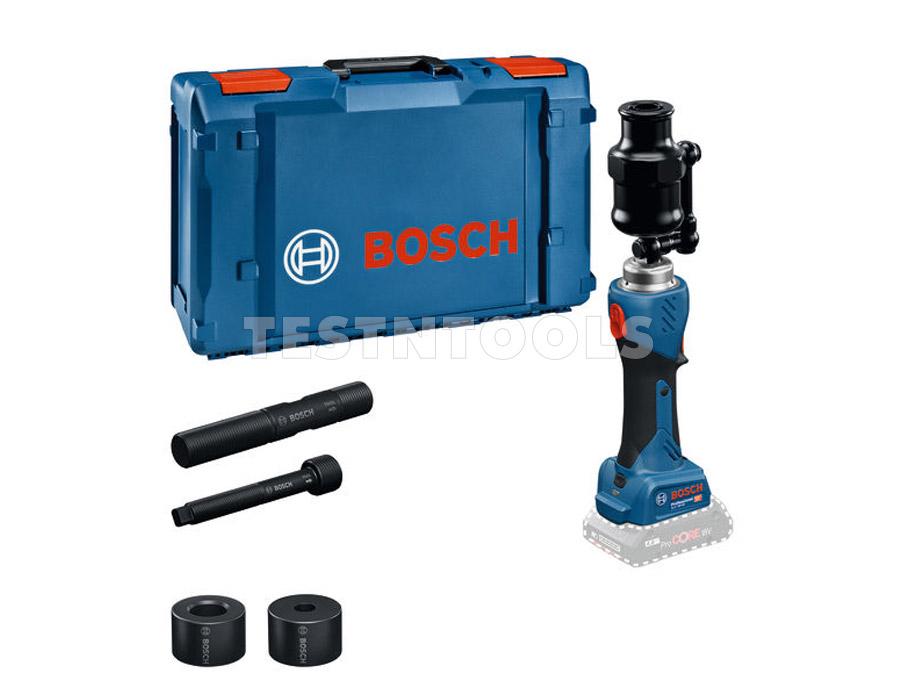

WHAT YOU GET

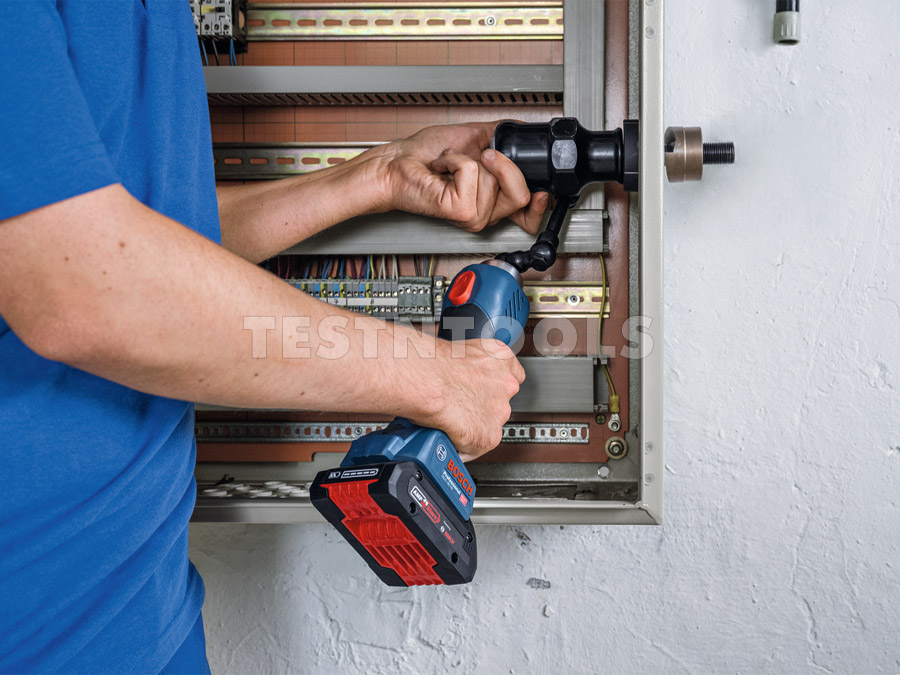

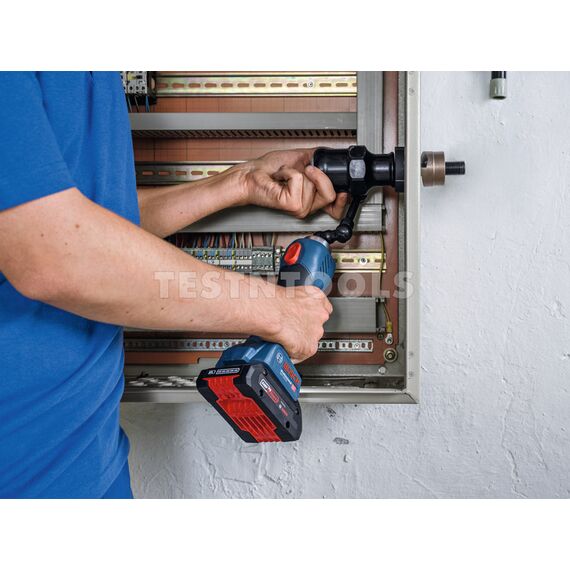

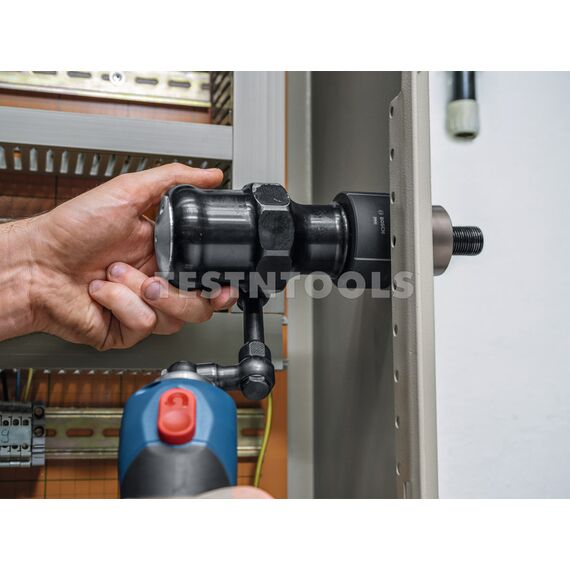

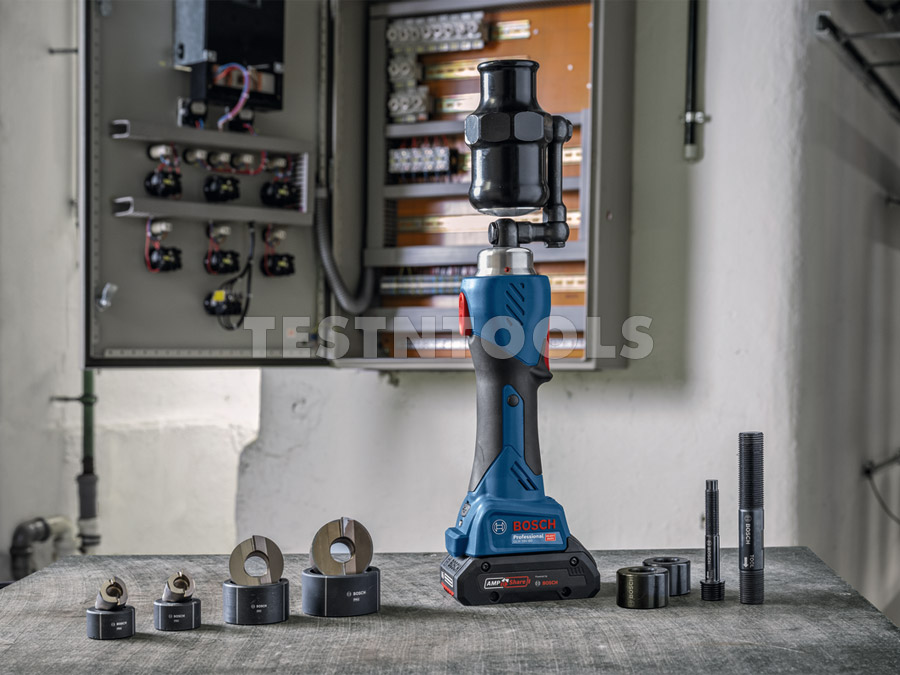

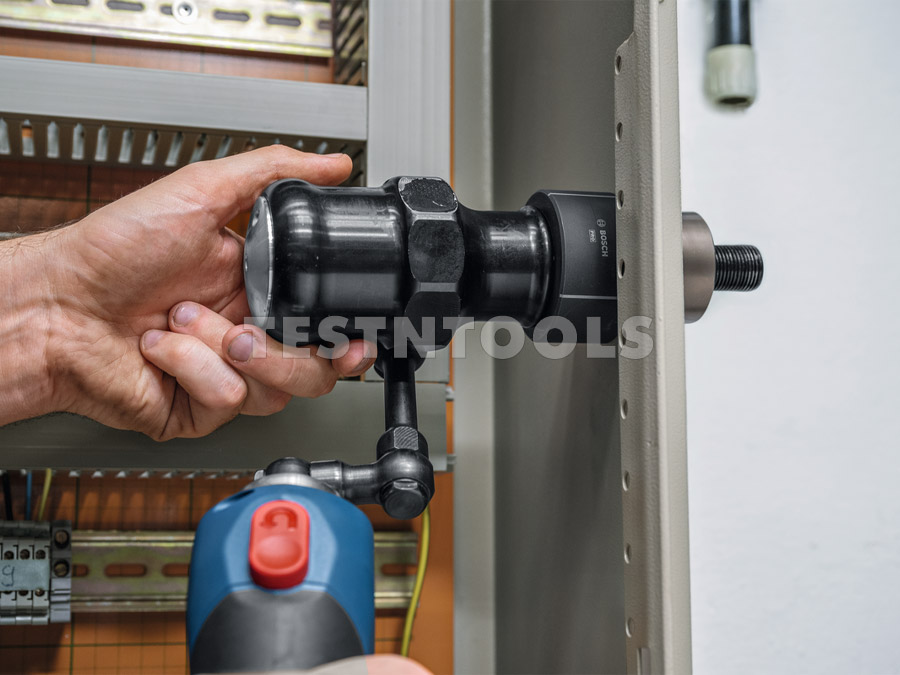

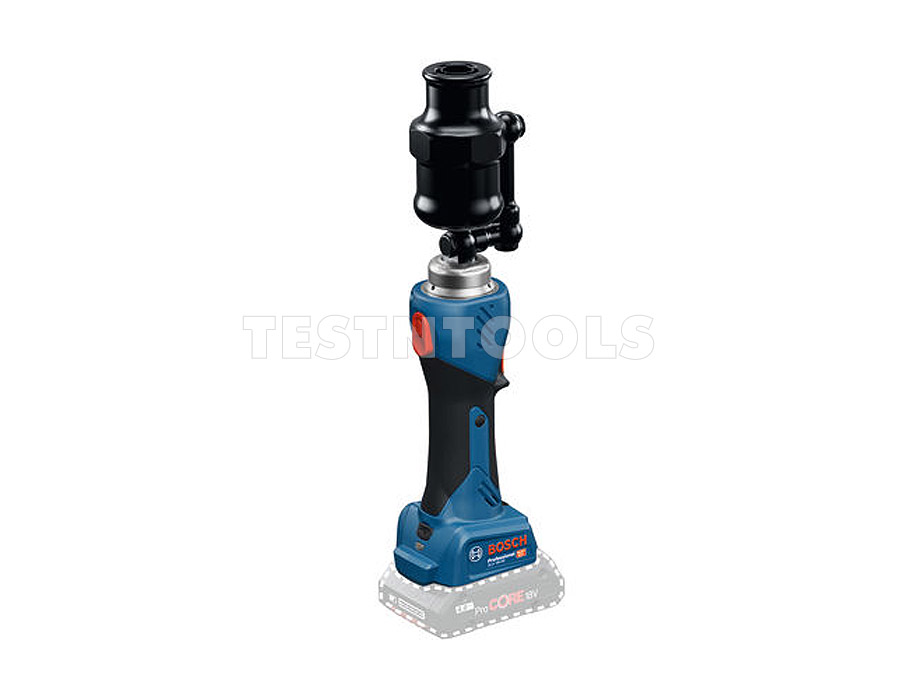

Bosch Cordless Hydraulic Punching Tool GLH 18V-60
1 x Draw stud 11.1 x 19 mm
1 x Draw stud 19 x 125 mm
1 x Spacer 11.1 mm
1 x Spacer 19 mm
1 x XL-Boxx
User manual
6 Year Warranty including Trade upon registration
