RECOMMENDED USE
Copper and Aluminum cables up to 300 mm²
FEATURES

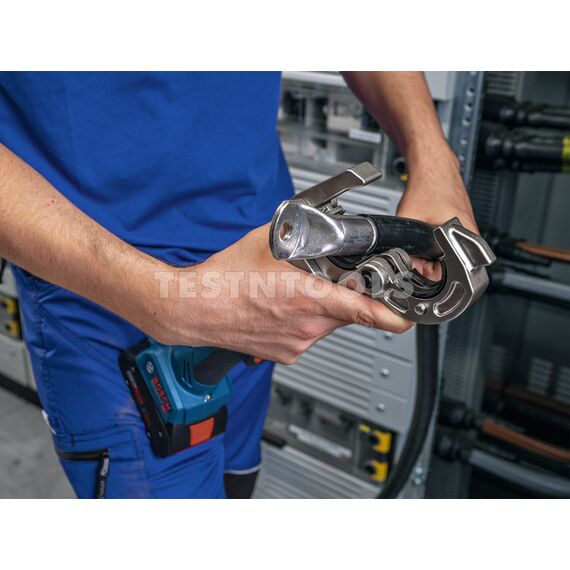

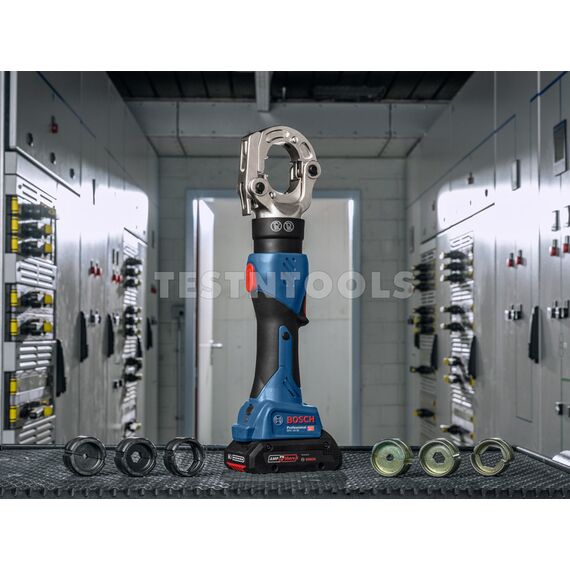

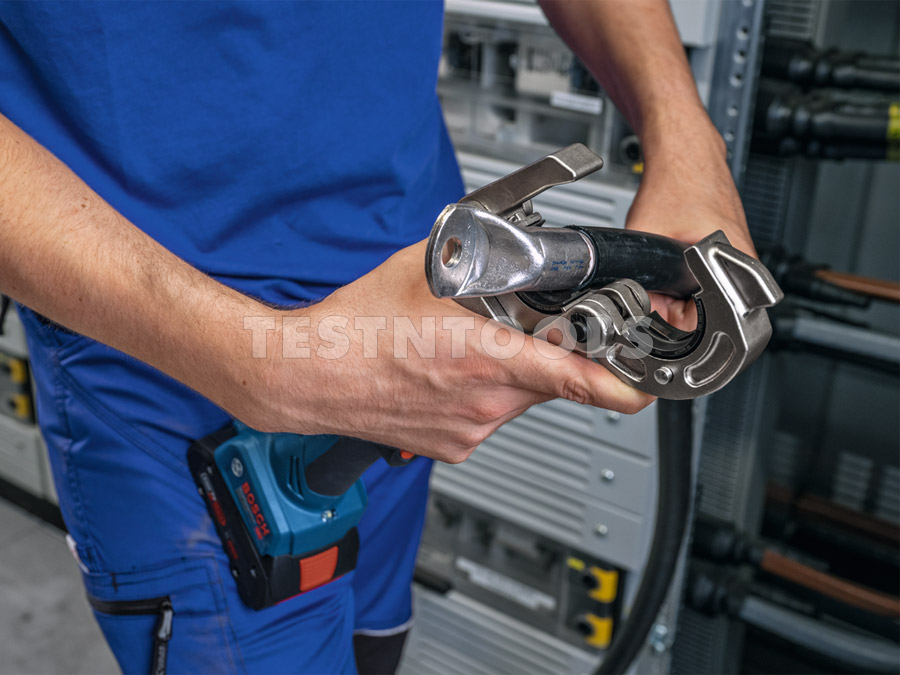

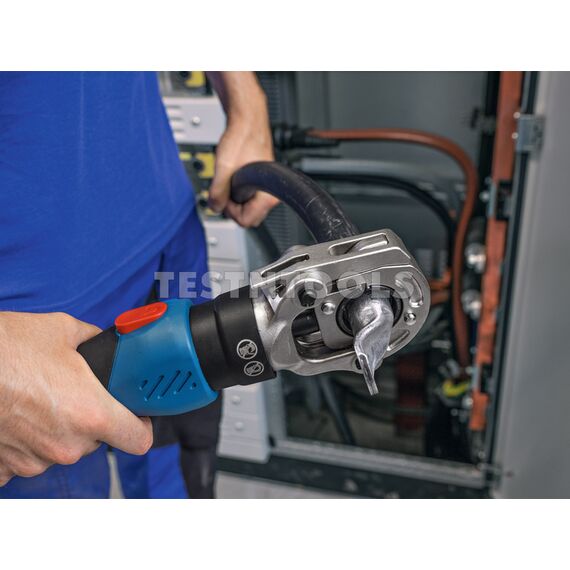

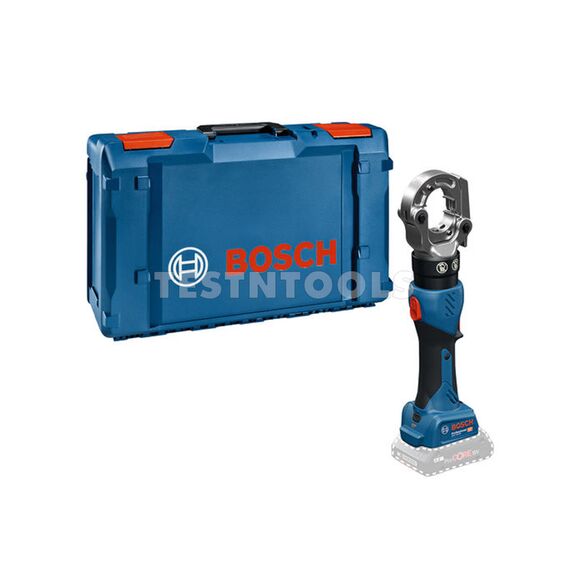

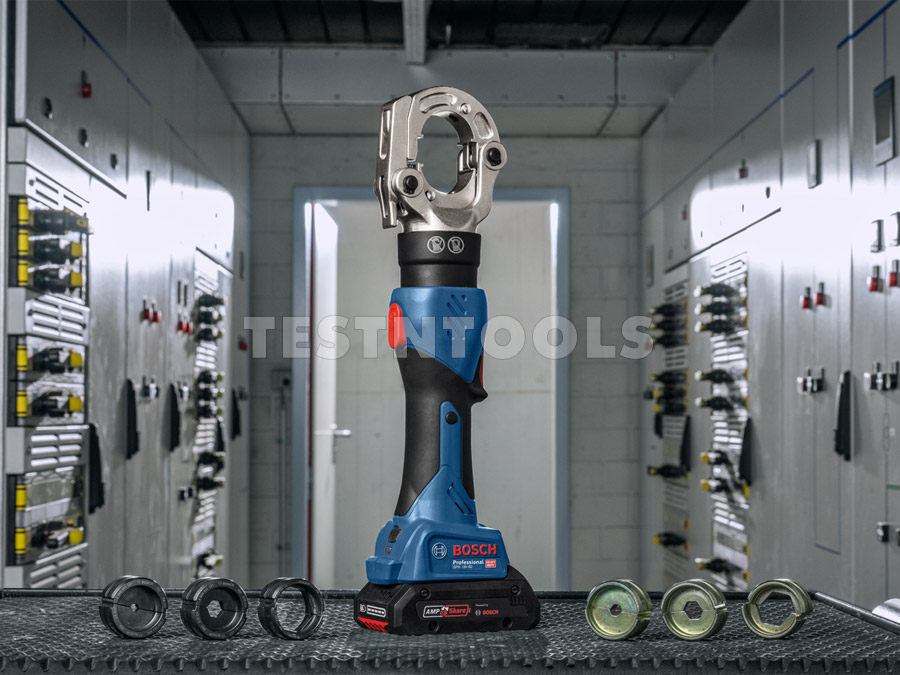

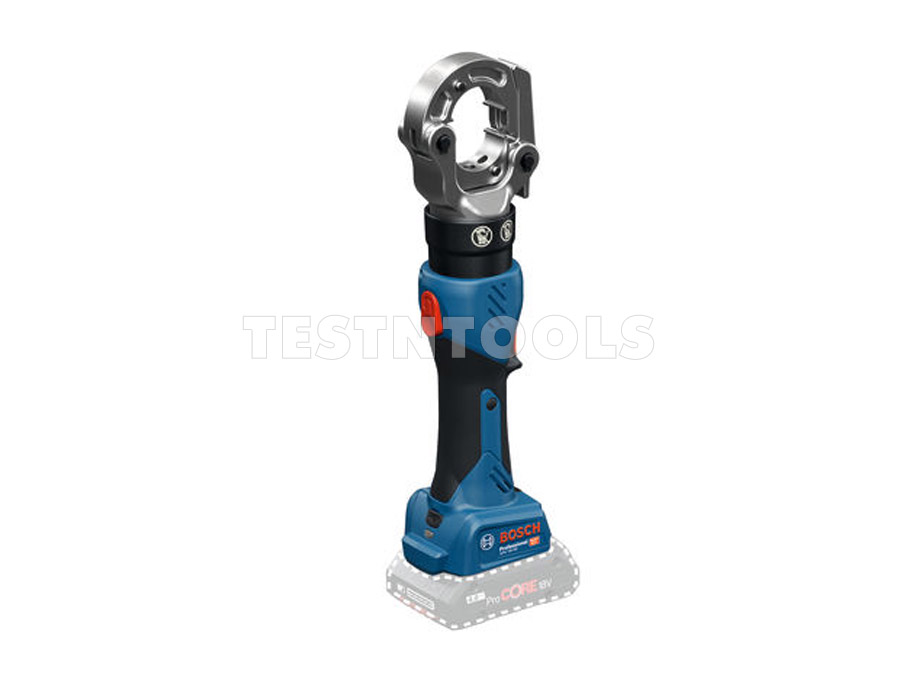

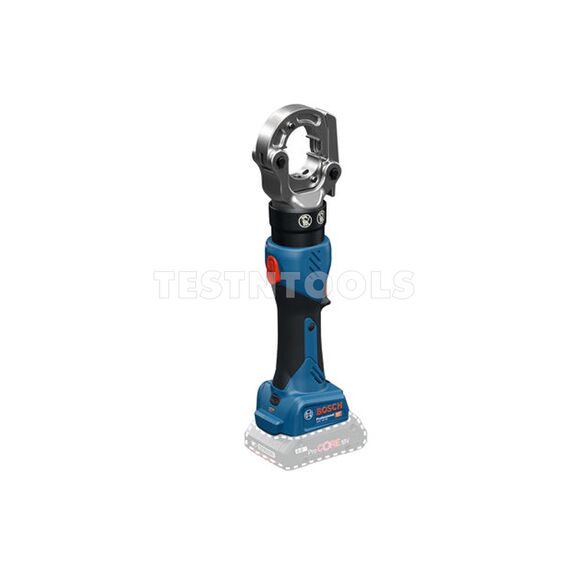

> Cordless hydraulic crimping tool
> Constant 60kN output force due to electronic pressure sensor that monitors pressure levels
> Status LED indicates reached target pressures, tool status, and maintenance
> With the manual pressure release function, you can always retract safely
> Precise monitoring of pressure through electronic pressure sensor
> Long lifetime with outstanding maintenance interval of 20,000 crimps

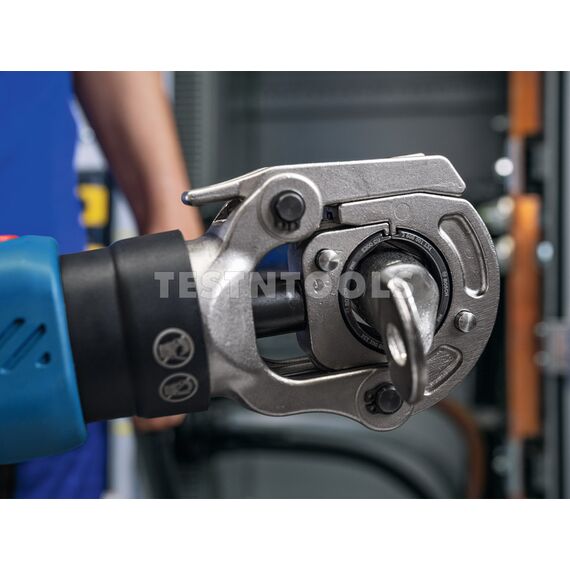

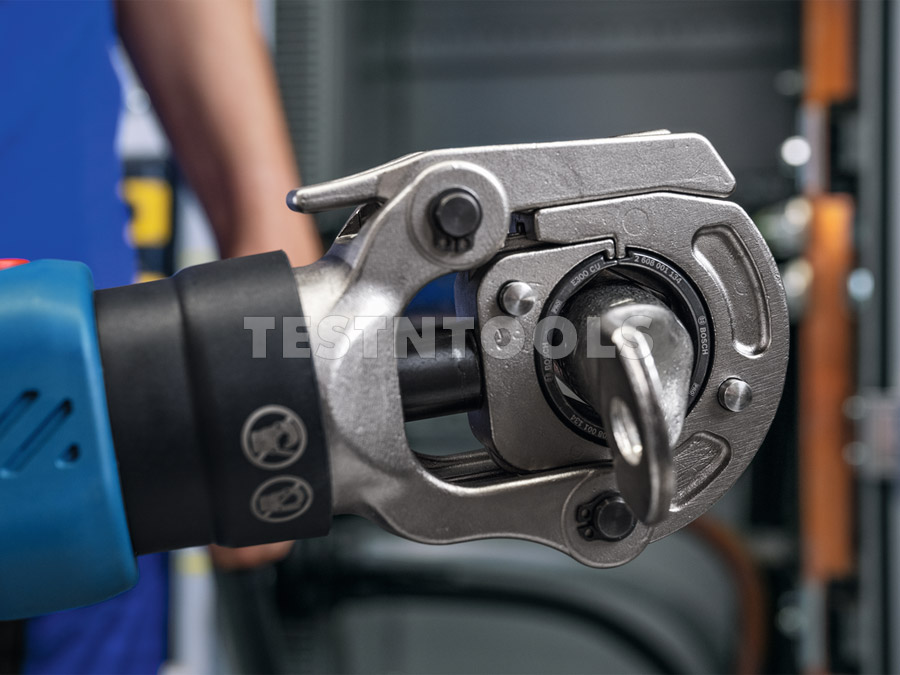

> Ergonomic design with 340-degree rotatable crimping head and optimized center-of-gravity
> USB connection and read-out software (free and available to download below)
> Comes with a certificate that guarantees 100% end-of-line quality control
> Compatible with all Bosch Professional 18V batteries
SPECIFICATIONS
Crimping force max 60 kN
Crimping range max 300 mm²
Crimping range min 6 mm²
Head rotation 340 °
Stroke length max 17 mm
Automatic retraction Yes
Connecting material Cu and Al Yes
Maintenance interval 20.000 cycles
Manual pressure release Yes
Manual retraction stop Yes
USB connector Yes
Read-Out Functionality Yes
Work light Yes
Automatic pressure limitation and monitoring Yes
USB mode USB 2.0
Crimping time 2 s to 5 s (depending on cable cross-section)
Tool dimensions (length) 357 mm
Tool dimensions (width) 97.4 mm
Tool dimensions (height) 77.2 mm
6 Year Warranty including Trade upon registration
