FOR CUTTING
Multi-stranded Copper and Aluminum cables up to 40 mm diameter
FEATURES

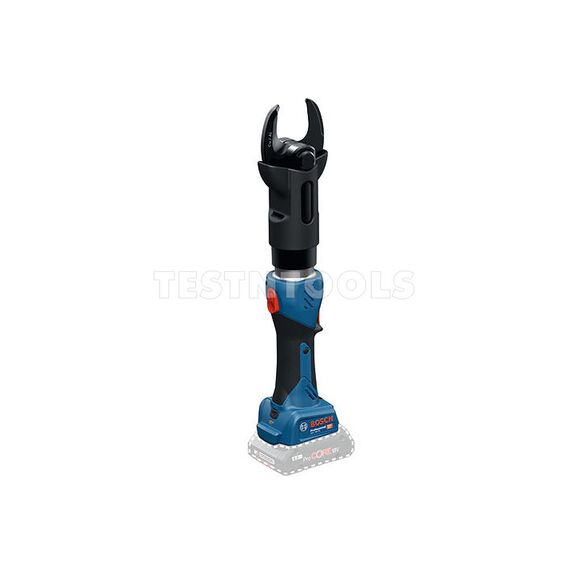

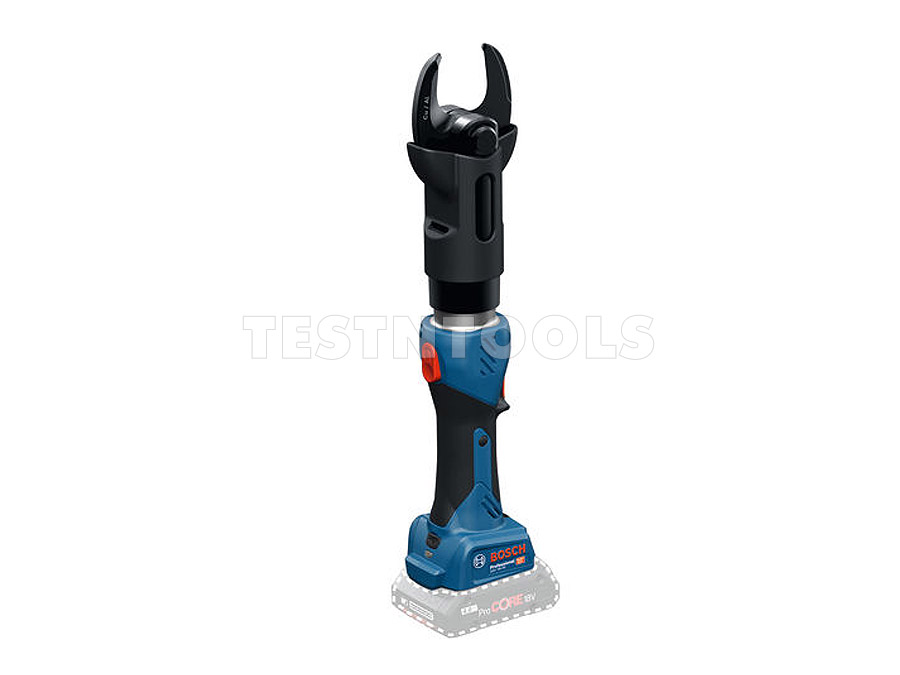

> 18V hydraulic cutting tool
> Intelligent cutting detection which opens jaws automatically after each cut
> Long lifetime with outstanding maintenance interval of 20,000 cuts
> Reinforced steel blades and comprehensive pressure monitoring functions
> Ergonomic design with 340-degree rotatable crimping head and optimized center-of-gravity
> USB connection and read-out software (free and available to download below)
> Status LED to view cutting history, error messages, tool status, and maintenance needs
> With the manual pressure release function, you can always retract safely

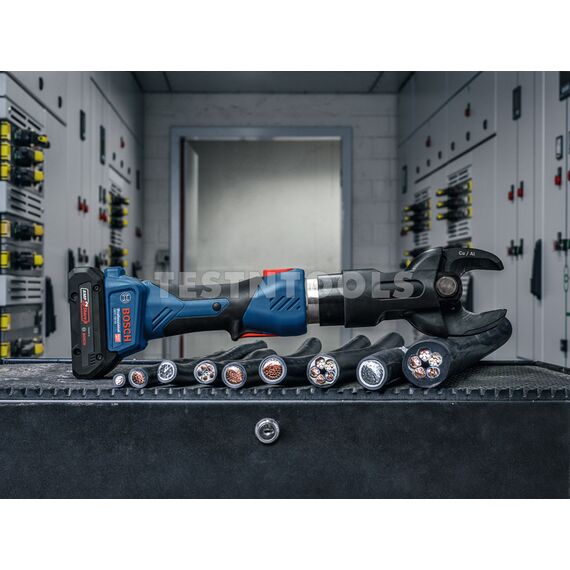

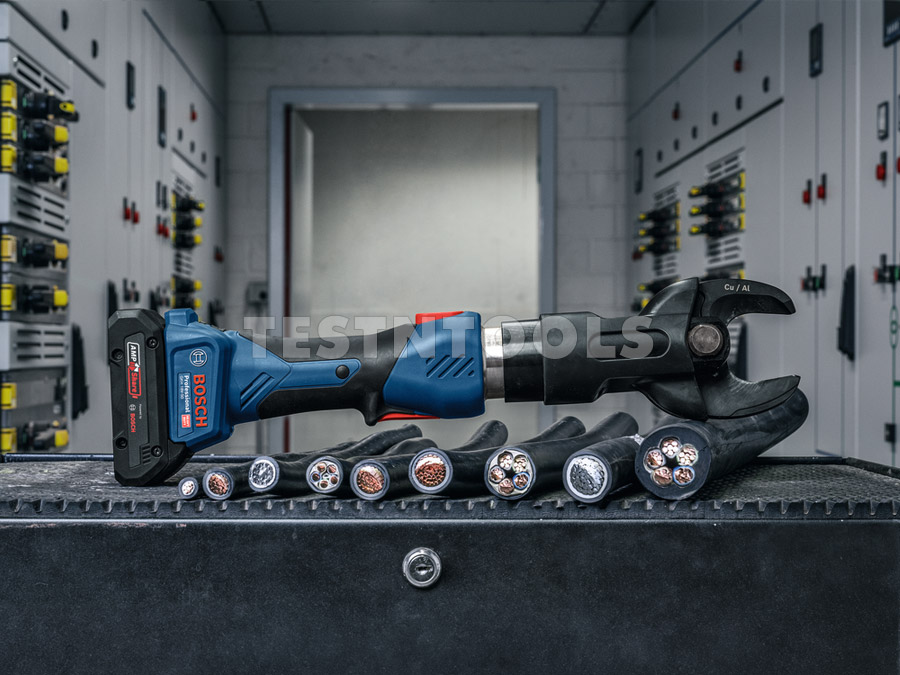

> For clean and high-quality cutting of copper and aluminum cables
> Comes with a certificate that guarantees 100% end-of-line quality control
> Compatible with all Bosch Professional 18V batteries
SPECIFICATIONS
Cutting force max 50 kN
Head rotation 360 °
Max. capacity cable diameter 40 mm
Automatic retraction Yes
Cu- and Al-cables (multi and fine stranded) Yes
Intelligent cutting detection Yes
Maintenance interval 20.000 cycles
Manual pressure release Yes
Manual retraction stop Yes
USB connector Yes
Steel Cable (ACSR) No
Read-Out Functionality Yes
Work light Yes
Automatic pressure limitation and monitoring Yes
USB mode USB 2.0
Cutting time 2 s to 5 s (depending on cable cross-section)
Tool dimensions (length) 427.5 mm
Tool dimensions (width) 97.4 mm
6 Year Warranty including Trade upon registration
