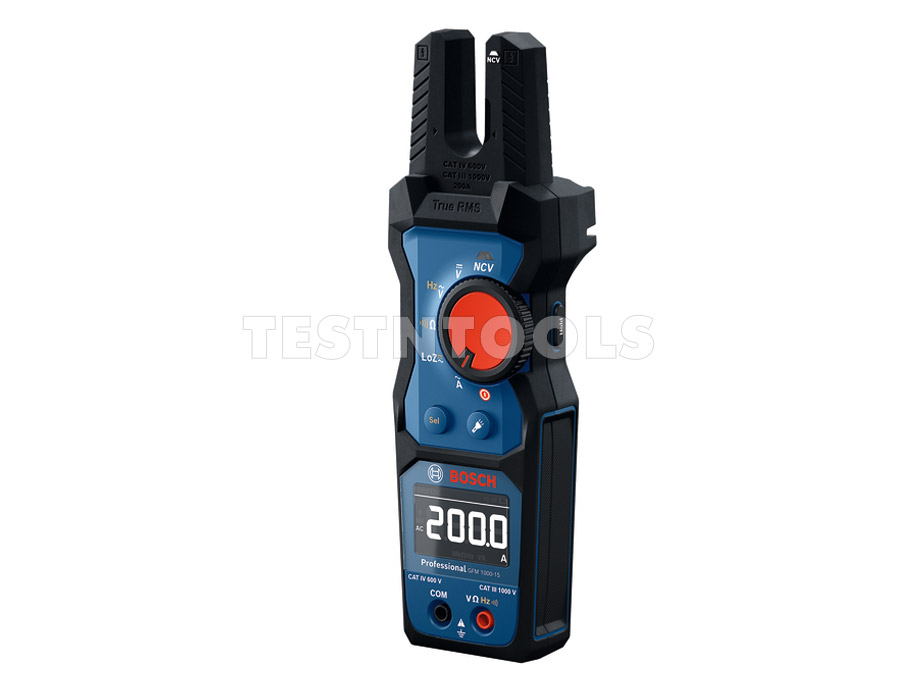

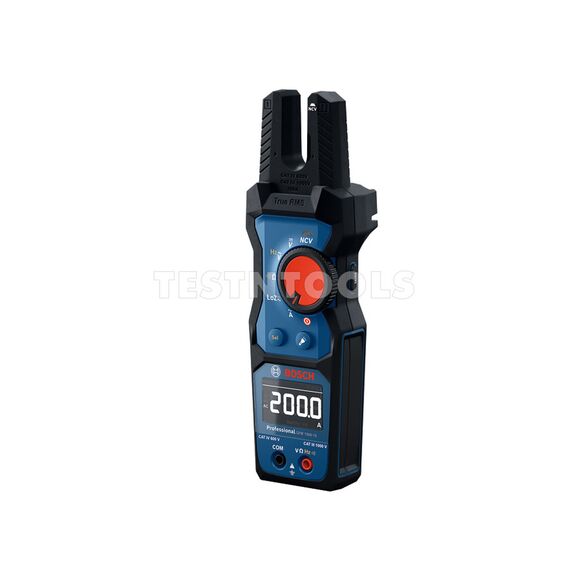

The GFM 1000-15 Professional delivers fast, lead-free AC current measurement up to 200 A with its open-clamp design. True RMS accuracy, NCV detection and a sharp inverted LCD provide clear, reliable results. Rugged, drop-proof and magnet-ready, it’s built to boost productivity in tight panels and demanding electrical environments.
FEATURES
> True RMS
> Safety rated CAT IV 600 V and CAT III 1000 V
> Measures current AC, voltage AC/DC up to 1000 V, continuity, resistance, and has LoZ V AC/DC integrated
> Measures up to 200 A AC
> Drop-proof from up to 2m
> Large inverted LCD display
> IP54 rating against dust and water
> Compatible with the Li-ion battery pack
> Open clamp design, with flashlight
> Integrated non-contact voltage detector (NCV)
> With magnetic hanging solution, dual power
> High-quality measuring strips made of flexible and durable silicone
SPECIFICATIONS
AC voltage 1,000 V
AC voltage resolution 1 V
AC voltage accuracy ± 1.5 % + 5
AC current 200 A
AC current resolution 0.1 A
AC current accuracy ± 3.0% + 3
DC voltage 1,000 V
DC voltage resolution 1 V
DC voltage accuracy ± 1.0 % + 2
Resistance 60 MΩ
Resistance resolution 0.01 MOhm
Resistance accuracy ± 2.0 % + 5
Continuity yes
Continuity resolution 0.1 Ohm
Continuity accuracy ± 1.0 % + 5
Frequency resolution 0.01 kHz
Frequency accuracy ± 0.1 % + 2
Low input impedance (LoZ) 1,000 V
IP-Protection IP54
True RMS yes
Safety class CAT IV 600 V / CAT III 1000 V
Display type LCD Inverted
Non-Contact-Voltage (NCV) yes
Torch light yes
Acoustic feedback yes
Measuring range for frequency 10 Hz to 50 kHz
Continuity range 0 Ω
Cable Break Detection no
Powered by 2 x AA batteries
Packaging size 103 x 264 x 82 mm

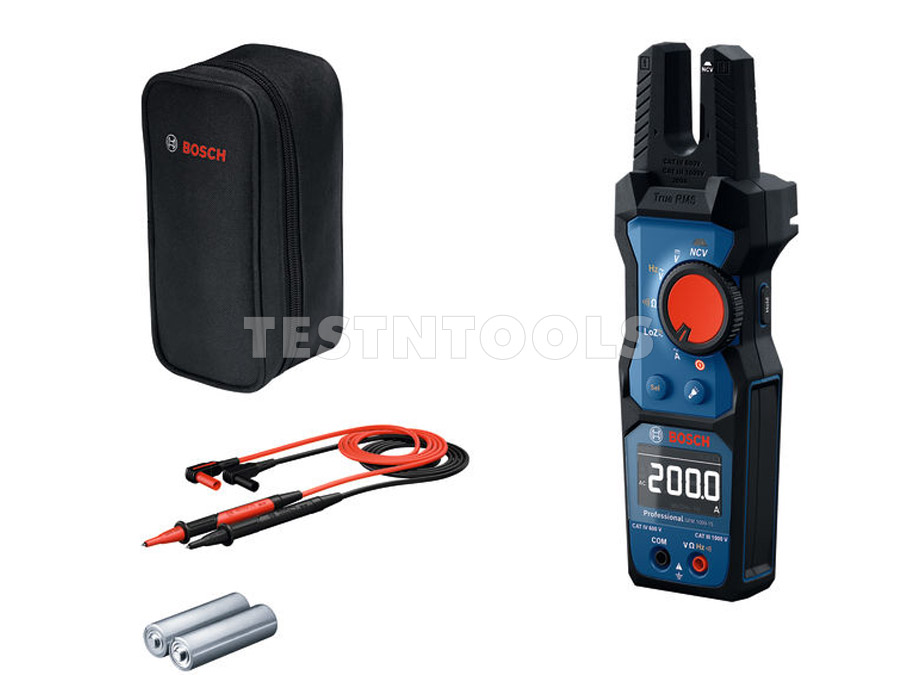

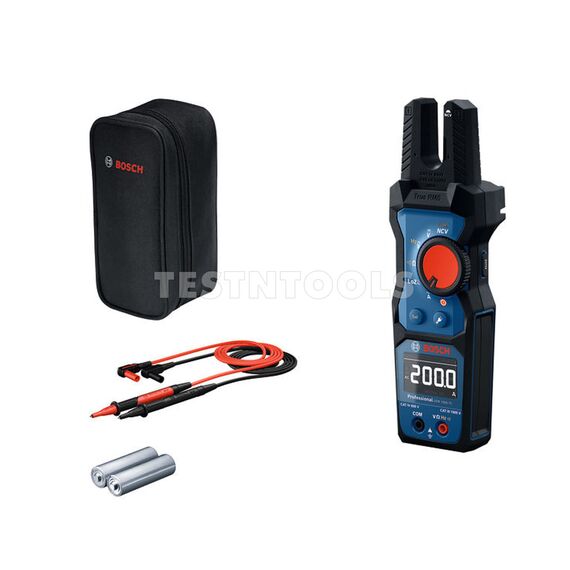

WHAT YOU GET
Bosch Fork Meter GFM1000-15
2 x 1.5 V LR6 battery (AA)
Test lead MS 90 Professional
Pouch
User manual
6 Year Warranty including Trade upon registration
