Liffu Electric Hoist 230V Wire Rope 18m 300Kg PA300 With Remote Control

Liffu Electric Hoist 230V Wire Rope 18m 300Kg PA300 With Remote Control




$429.00

(Incl. GST)
T30122
In stock
+
Add to wish list

Description

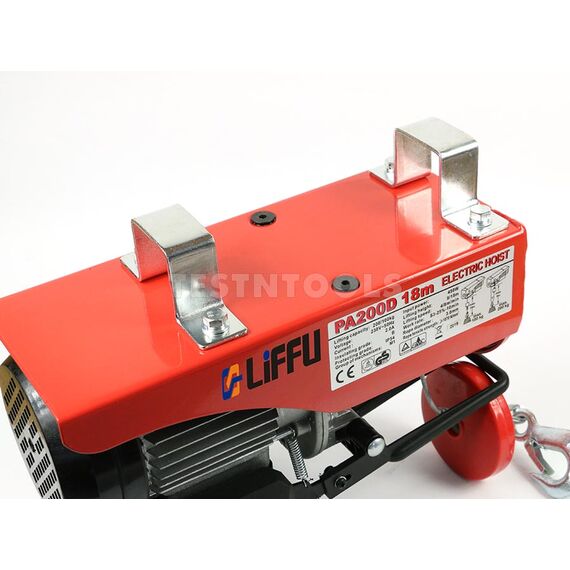

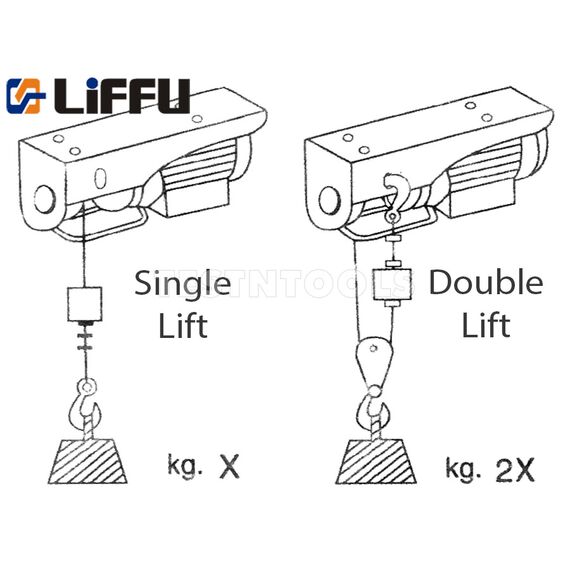

This hoist (can also be mounted as a winch) bolts onto an overhead i-beam or gantry trolley making it easy to lift anything you want. Plug it into an ordinary power point and away you go. Maximum lift is achieved when the rope is doubled over with the included pulley hook.

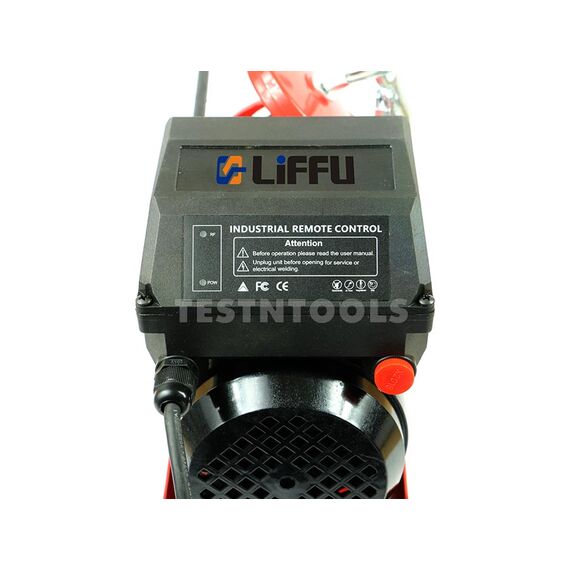

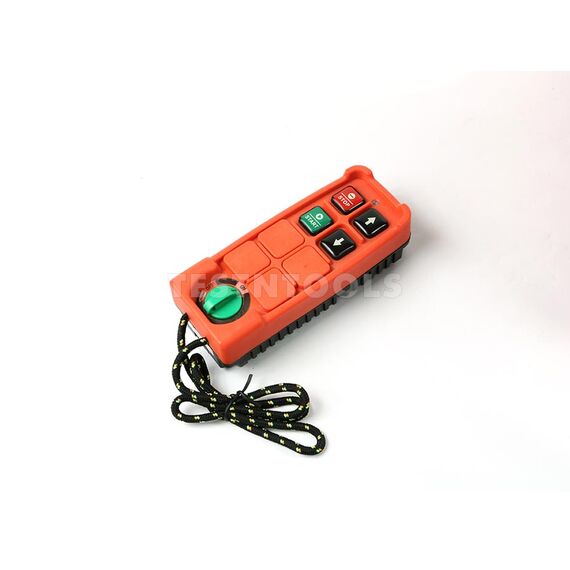

The wireless remote control allows operation from a safe distance without the inconvenience of a pendant and cable. This is a big advantage and cost-saving in many circumstances.

FEATURES
Up/down switch
Emergency stop
Thermal overload protection
Up/down overrun protection
Electromagnetic brake
Hook ballast

SPECIFICATIONS
Load 150Kg single rope, 300Kg double rope
Height 18m single rope, 9m double rope
Speed 8m/min single rope, 4m/min double rope
Single-phase 230V 550W
Size 330L x 130W x 210H mm*
Weight 10.6Kg**

STANDARDS
Australian/New Zealand Standard AS/NZS 1418.2
International CE certification, GS, EMC, and RoHS

INCLUDES
Electric hoist
Wireless remote control and 2 x AA batteries
Pulley hook for double rope operation
​Mounting brackets and bolts
Manual

12 MONTHS WARRANTY

NOTES
* Size of hoist only without mounting brackets or hook.
** Total weight including brackets, pulley hook, remote control, and batteries


What's the difference between and HOIST and a WINCH?

HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg

Pulling is easier than lifting and a lifted load needs to be stopped with a brake.

Attachments

Liffu PA Series Remote Control Hoist Instructions Supplement (Liffu-PA-Series-Remote-Control-Hoist-Instructions-Supplement.pdf, 115 Kb) [Download]
