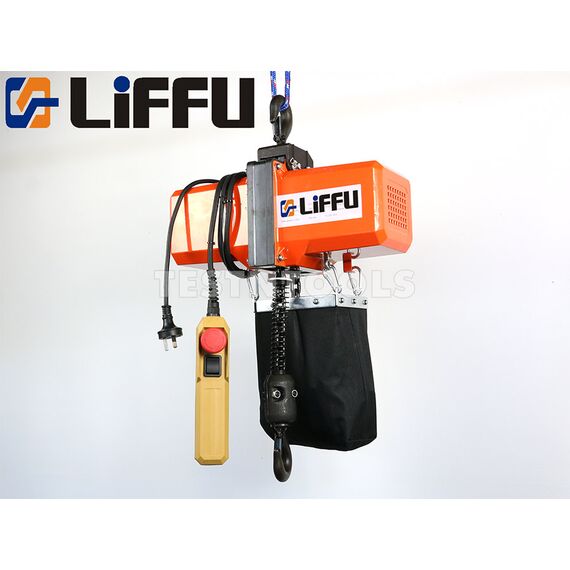

Liffu Electric Chain Hoist 230V 6m 500Kg

Liffu Electric Chain Hoist 230V 6m 500Kg




$899.00

(Incl. GST)
T31358
In stock
+

Description

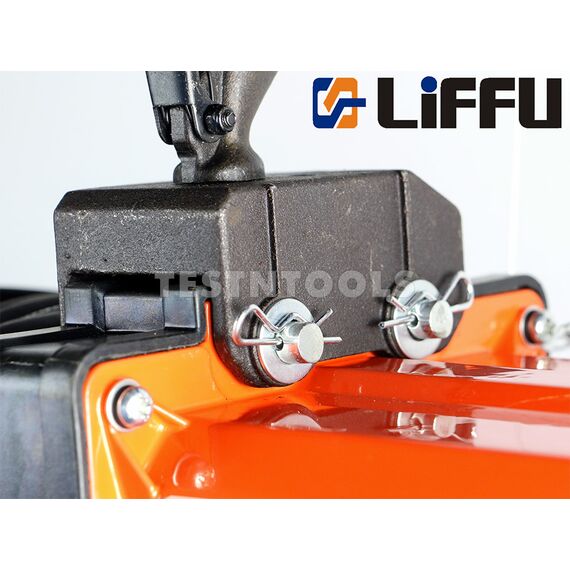

This electric chain hoist hooks onto an overhead i-beam or gantry trolley to make easy work of any lifting jobs you have around the workshop. No special mounting is required, just a loop or shackle for the top hook to go into so it's more portable than other hoists.

Just plug it in to an ordinary power point and away you go. The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure.

FEATURES
Up/down switch
Emergency stop
Thermal overload protection

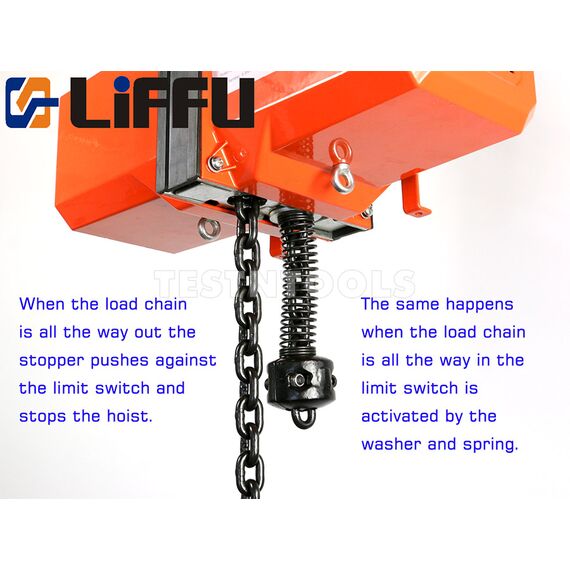

Up/down overrun protection
Electromagnetic brake
Swivel hook with ballast
Cable strain reliefs

SPECIFICATIONS
Capacity 500Kg
Single phase 230V 680W
Lifting height 6m
Speed 3m/min
Reduction drive 115:1
Chain link dia. 6.3mm
Hook to hook 480mm minimum
Pendant cable 5m (extendable)
Duty cycle 25% over 10 minutes
Body size 390L x 170W x 170H mm
Weight 22Kg

STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
International CE certification, GS, EMC and RoHS

INCLUDES
Electric chain hoist
Chain bag and clips
User manual

12 MONTHS WARRANTY - For Home Use



What's the difference between and HOIST and a WINCH?

HOISTS
 are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg

Pulling is easier than lifting and a lifted load needs to be stopped with a brake.

Shipping 23.5Kg 0.059m3
